WILSON

Overview

Github Repository

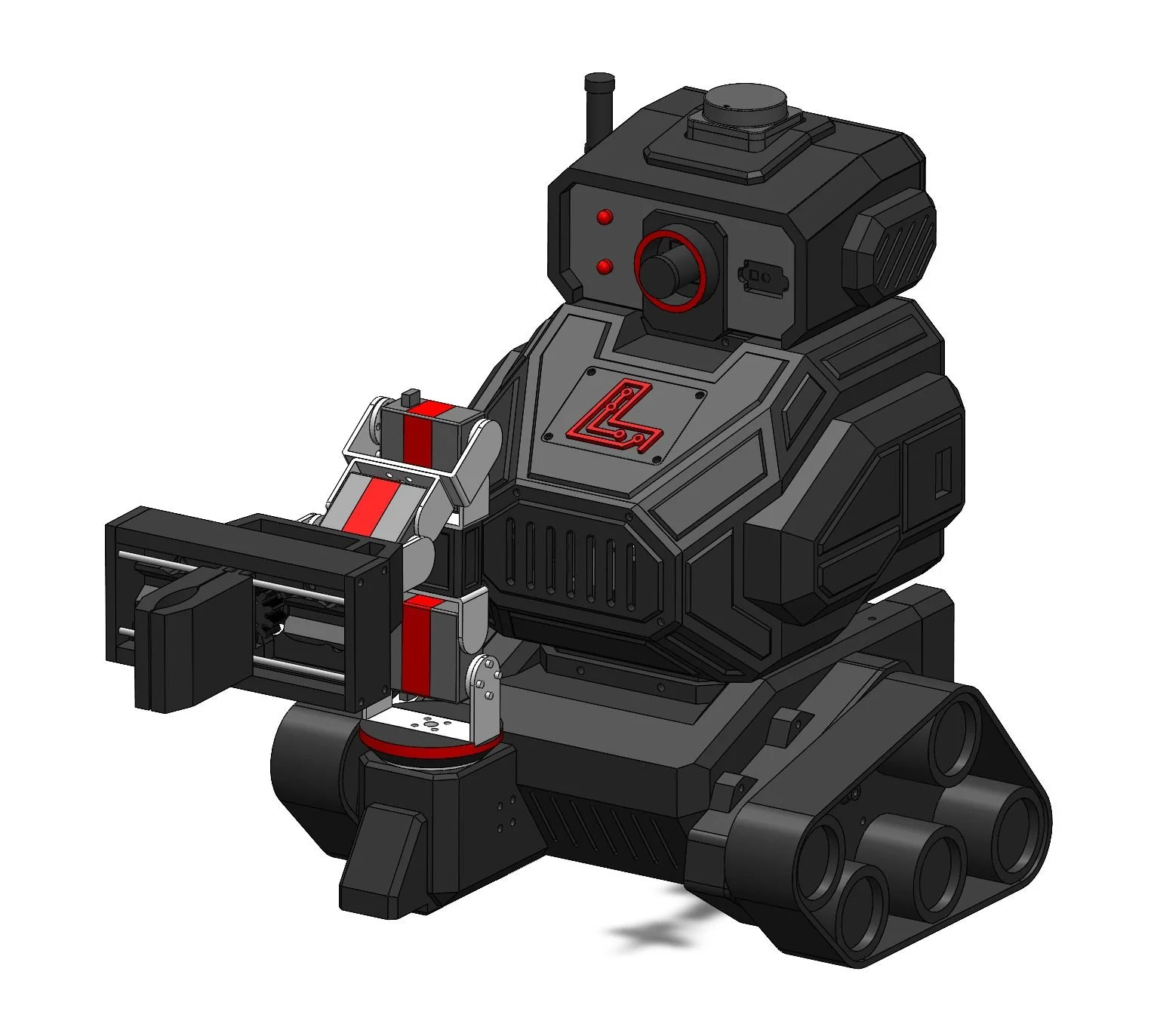

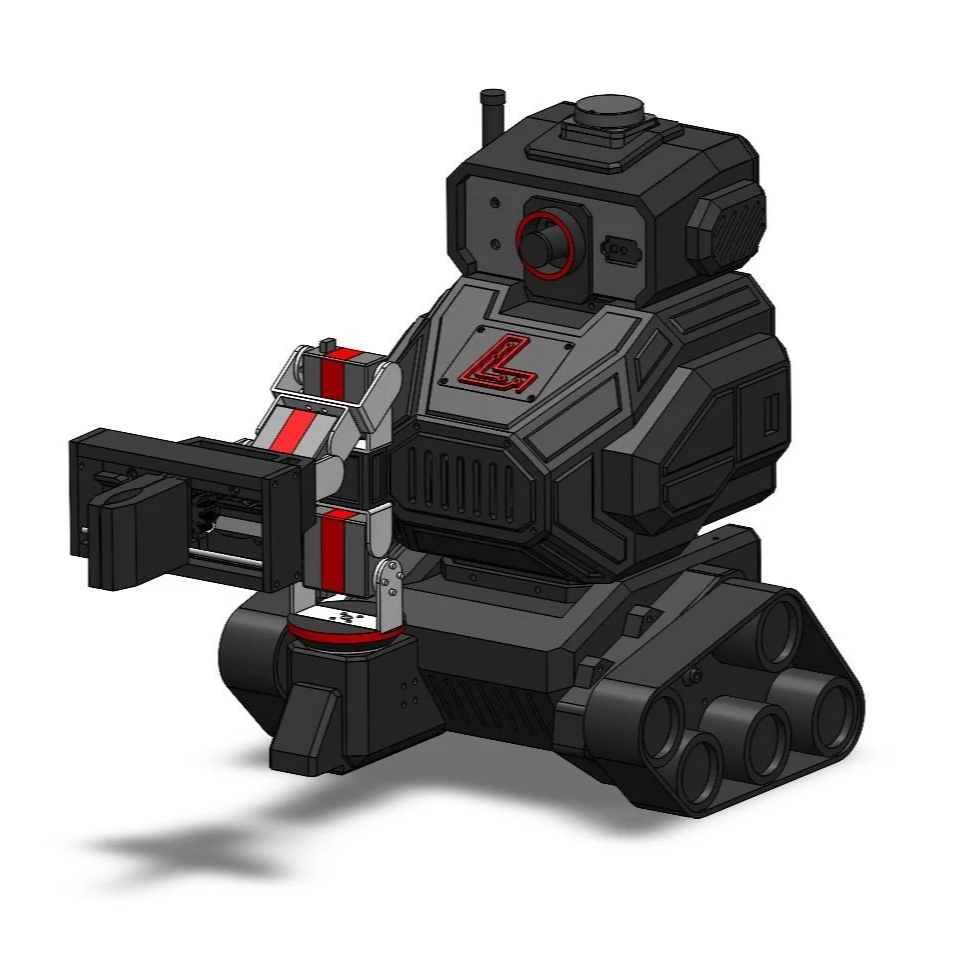

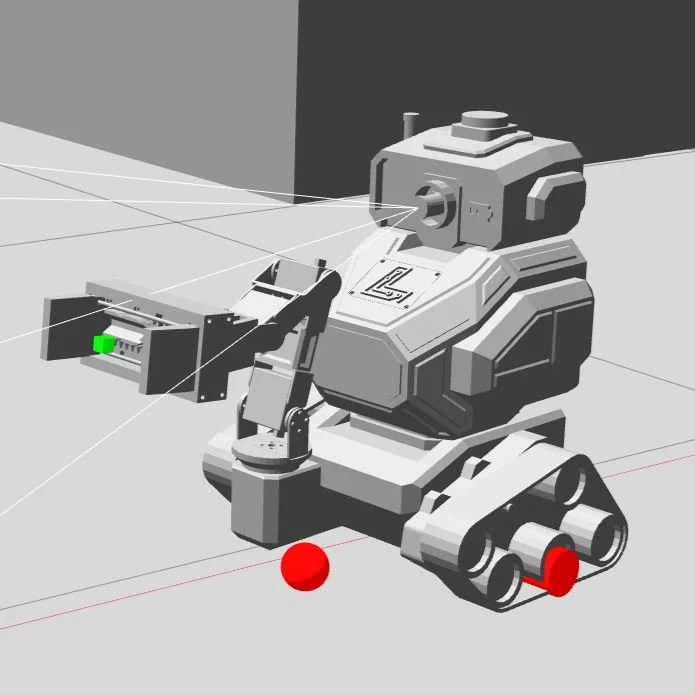

Wilson is a robot designed to autonomously retrieve your beverage of choice from a mini-fridge. Built on a differential-drive base with a 4-DOF manipulator, Wilson runs on ROS 2 and was developed using Gazebo simulations to accelerate testing and deployment. At its core, the robot uses the Gemini Live API to handle low-latency, bi-directional voice communication and to intelligently decide when to invoke its navigation, perception, and manipulation tools. This allows you to simply say, “Wilson, can I have a Coke?” and have the Wilson handle everything from planning to delivery. Wilson’s mechanical components and body were custom designed in SolidWorks and fabricated in-house (my house) on a Bambu Labs A1 3D printer.

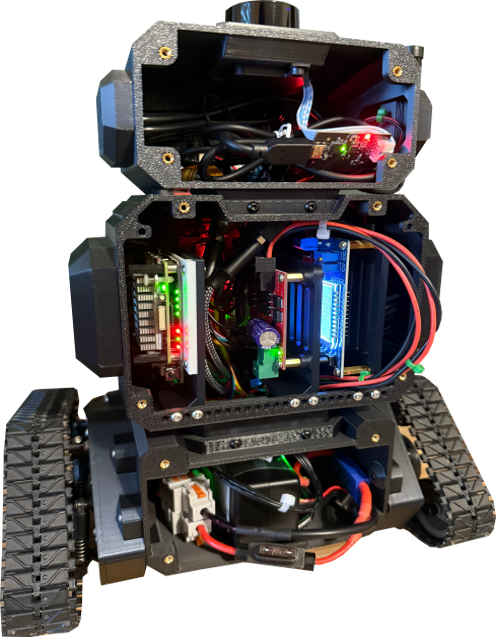

Hardware

• Differential-drive base with a 4-DOF manipulator.

• Raspberry Pi 5 (8 GB) main computer.

• Two Arduino Nano microcontrollers for motor and servo control.

• LD-19 LiDAR for navigation and mapping.

• ArduCam ToF camera for depth perception.

• USB camera for visual recognition.

• Custom soft 3D force sensor in the gripper developed by Axioforce.

• Custom parallel gripper mechanism and body fully designed in SolidWorks and 3D-printed.

• 2 GA37-520 geared DC motors with encoders and L298 motor driver.

• 5 20 kg digital servos.

• 3S LiPo battery.

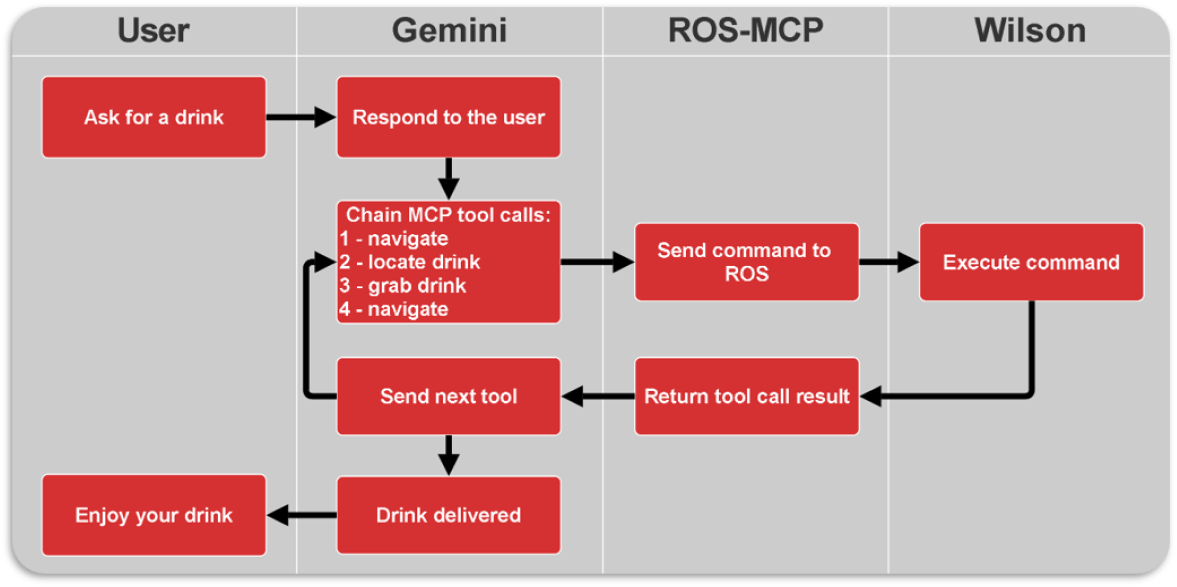

How It Works

1. You ask Wilson for an ice cold beverage of your choosing.

2. Gemini Live interprets the request and decides which tools Wilson should use with the ros-mcp-server.

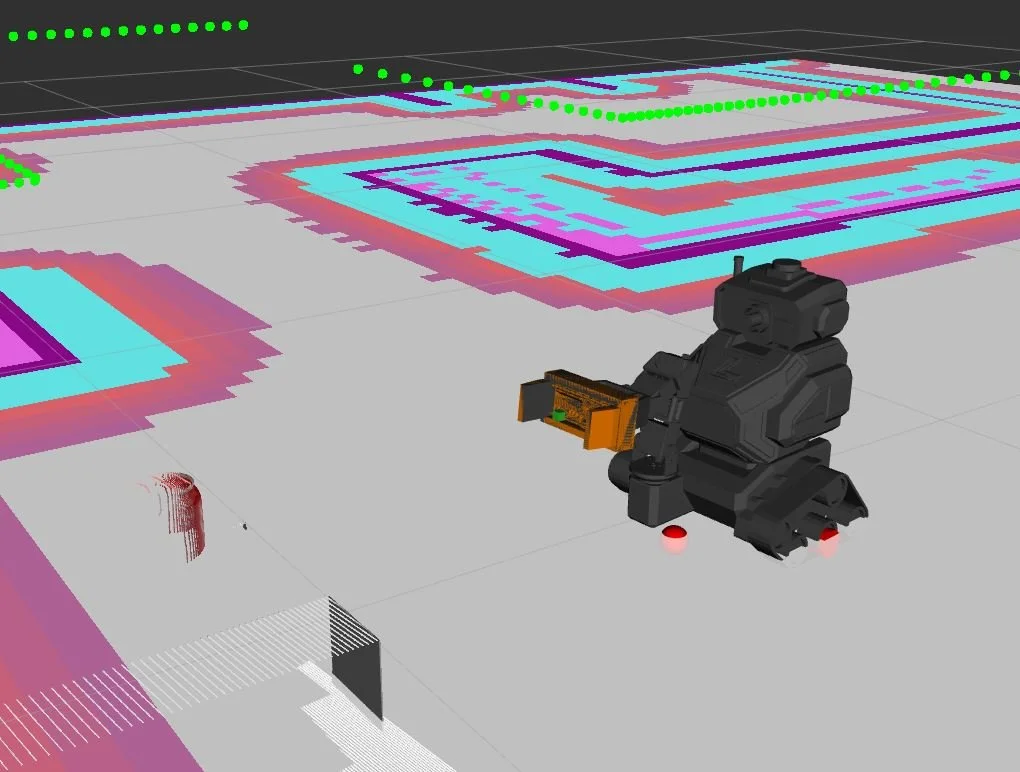

3. Wilson plans a path to the mini-fridge with Nav2 tool.

4. Wilson sends a command to open the motorized mini fridge door.

5. RGB and depth cameras detect and localize the requested drink.

6. Wilson uses the MoveIt tool to plan and execute the grasp.

7. Wilson navigates back and delivers the beverage to you.

FUTURE WORK

• Collaborating with Axioforce to test the robotic applications of their soft 3D force sensors for force controlled grasping.

• Incorporate a mini fridge for full beverage service.
